Key Factors in Custom Off-Road Caravan Design

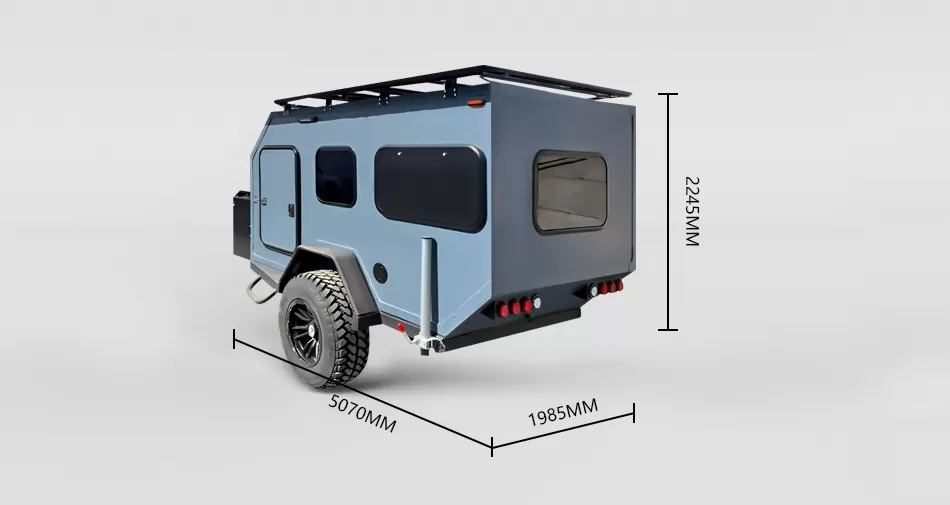

| Chassis&Body | Chassis | Galvanised |
| Drawbar | 50mm (2") Ball Coupler | |
| Plug | 7-pin /13pin Wire Connector | |
| Brakes | 10'' Electric brakes with Hand Brake | |
| Retainer | Safty Chain | |
| Wheels&Tyres | 16” Alloy Wheels with 265/75R16 Off Road Tyres | |
| Body Material | Sandwich composite board structure | |
| Suspension | Torque shaft suspension | |
| Jockey Wheel | Adjustable guide wheel | |
| Stabilizer Leg | Rear Support Leg x2 | |
| Mudguard | Rubber mudguard | |
| Door | Custom Door with window | |
| Window | High thermal insulation acrylic windows | |
| Roof Rack | Rooftop Rack plate | |

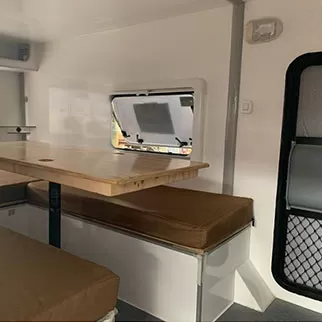

| Interior | Sofa and Table | Wooden swivel table with seating for 4 |

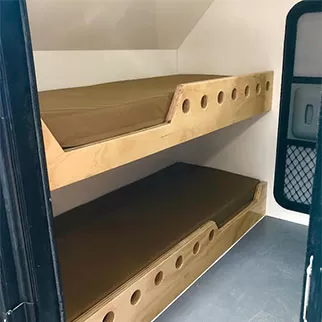

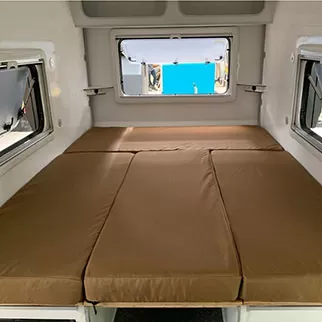

| Sleeping Area | Bed with sponge mattress 2000*1500*80 mm | |
| Leisure Area and Cabinet | Environmental Friendly Paint Free Board | |
| Floor | Vinyl Flooring | |
| Electric System | Battery | 150AH Lead-Acid Battery |
| Inverter | 1000w | |
| Solar panel | 150W solar panel | |
| Control Panel | Rocker Switch | |
| Lighting | Internal Lighting, LED strip, External Lighting, Trailer lighting | |
| Socket / USB Socket | 240V Socket, 12V Socket, USB, Type-C,External city power socket | |
| Kitchen System | Gas Stove | Pull-out Gas Stove with Windbreak |
| Gas Bottle Holders | Mount Bracket | |
| Storage | Storage | Front Multi-Function Storage Box |
| Internal Storage | Internal cabinet,lower part of the sofa | |
| Alarm System | Alarm Sensor | Carbon monoxide sensor |
